Models

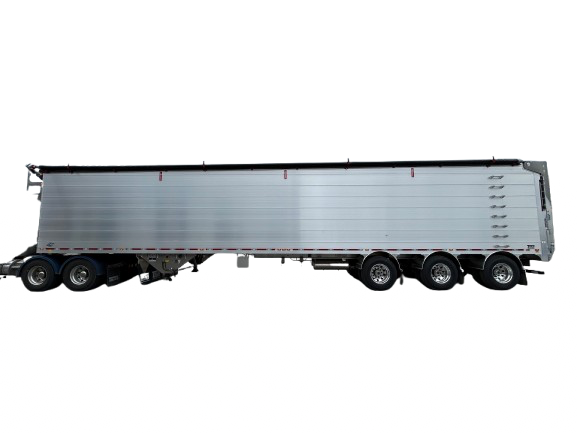

3-axle
Heading #1 | |
|---|---|
Length | 53’ |
Wall heigh | 13’ or 13’6” |
Legal payload | approximately 30 tonnes
|

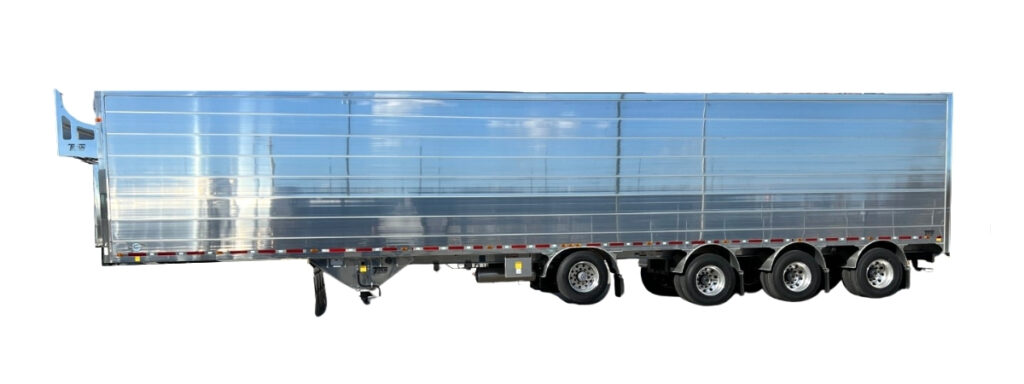

4-axle
Heading #1 | |
|---|---|
Length | 53’ |
Wall heigh | 13’ or 13’6” |
Legal payload | approximately 30 tonnes
|
Compare Models
| Models |

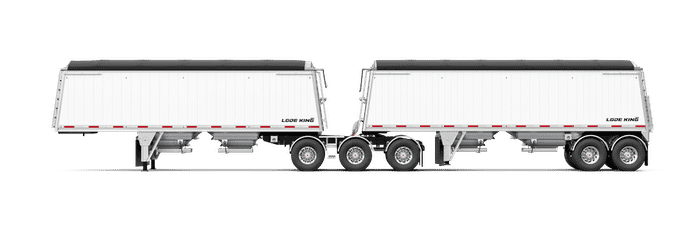

Super-B Aluminum |
Tri-Axle Aluminum |
Tandem Aluminum |
Super-B Steel |
Tri-Axle Steel |
|---|---|---|---|---|---|
| Length | Lead- 28'6", Pull 30'5" | 45'6", 48', 50' | 40' Standard | Lead 28'6", Pull 30' Standard; Lead 28'6", Pull 28'6" Option | 45' – 2 Hopper Standard; 45' – 3 Hopper Optional |
| Exterior Width | 102" | 102" | 102" | 102" | 102" |
| Interior Width | 98" | 98" | 98" | 98" | 98" |
| Wall Height | 82" Standard, 84" Optional | 82" Standard, 84" Optional | 72" Standard; 76" Optional | 79" Standard; 82" or 85" Optional | 2 Hopper – 80" Standard with 84"Option; 3 Hopper – 80" Only |
| King Pin | Lead 30" Standard, 24" Optional; Pull: 18" Standard | 15" | 24" Standard | Lead – 30" Standard, 24" Option; Pull – 15" Standard | 2 Hopper – 15" Standard; 3 Hopper – 18" Standard |
| Overall Height | 144" with 82" Wall, 146" with 84" Wall | 142" with 82" Wall, 144" with 84" Wall | 131" with 72" Wall, 135" with 76" Wall | 142" with 82" Wall; 139" with 79" Wall; 145" with 85" Wall | 140" with 80" Wall, 144" with 84" Wall |
| Slopes | 30° except 43° at Rear of Lead | Minimum 30° | Minimum 30° | Minimum 30° | Minimum 29.5° |
